Reversible Reactions and Equilibria

Some reactions are reversible - the products can react with each other to re-form the original reactants. Reversible reactions are shown using a double headed arrow.

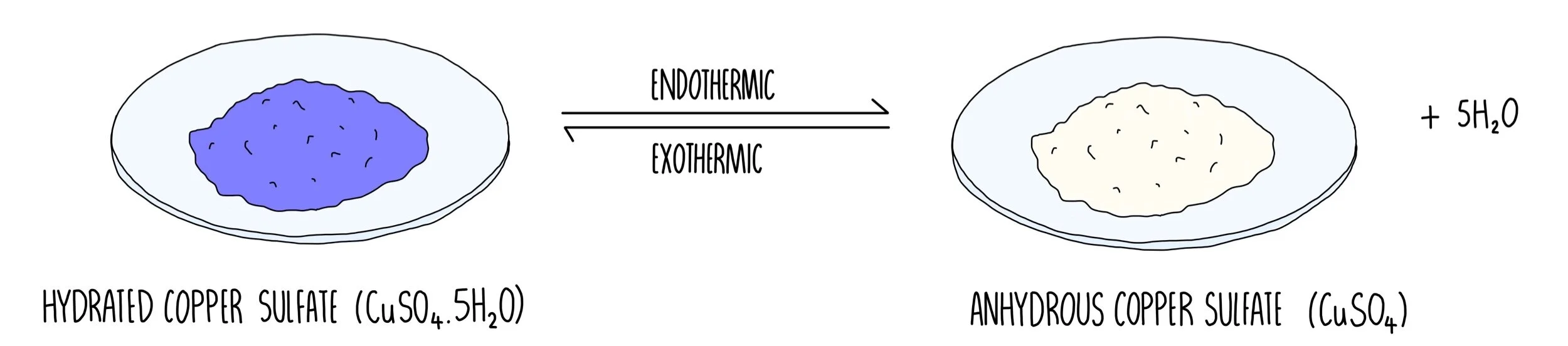

Reversible reaction: dehydration of blue copper sulfate

Blue copper sulfate is hydrated which means that the copper and sulfate ions in its crystal structure are surrounded by water molecules. When heated, the water is driven off, producing anhydrous copper sulfate which is a white solid. The reaction is reversible, which means that as soon as any water is around, anhydrous copper sulfate will be converted back into the blue hydrated form. The forward reaction is takes in heat energy (it is endothermic), which means that the reverse reaction must absorb heat energy (exothermic).

Reversible reaction: thermal decomposition of ammonium chloride

Ammonium chloride is a white solid which breaks down when heated into ammonia gas and hydrogen chloride gas.

Under cool conditions the ammonia and hydrogen chloride will react to reform ammonium chloride. The forward reaction is endothermic while the reverse reaction is exothermic.

Dynamic Equilibrium

In a closed system (one in which no reactants or products can escape e.g. a sealed container), reversible reactions can reach dynamic equilibrium. Dynamic equilibrium describes how reactants are being formed just as fast as the products are being formed, resulting in the concentrations of the reactants and products staying the same (be careful: this doesn’t mean that the concentrations of reactants and products are equal).

At equilibrium:

  • The forward and reverse reactions are still happening

  • The rate of the forward and reverse reactions is the same

  • The concentration of reactants and products remains constant

When a reaction has reached dynamic equilibrium and a change occurs (such as a change in concentration, pressure or temperature), the position of equilibrium will move to counteract the change.

Concentration

If the concentration of a reactant is increased, the position of equilibrium shifts to the right to favour the formation of products.

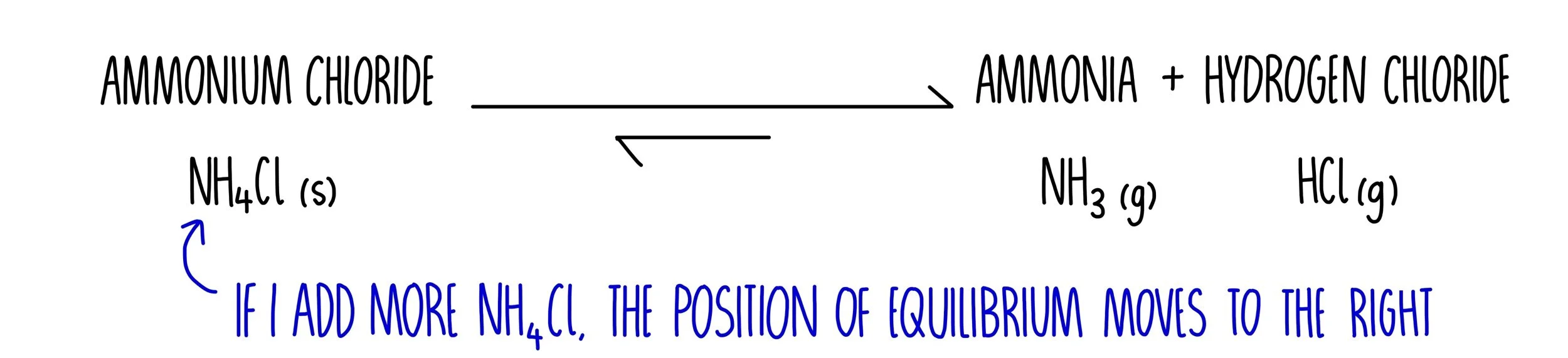

Imagine a sealed container filled with ammonium chloride which is decomposing into ammonia and hydrogen chloride. The reaction has reached dynamic equilibrium but then I add more ammonium chloride. The position of equilibrium will then move to the right, to make more products and balance things out. The same is true for the other way round - if I added more product to the container the position of equilibrium would shift to the left to favour the formation of reactants.

Pressure

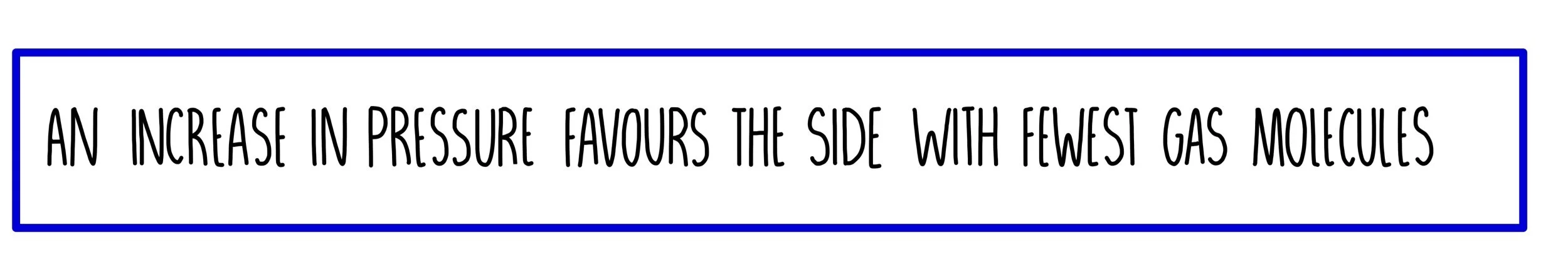

If the pressure is increased, the position of equilibrium shifts to the side with the fewest moles of gas.

For example, the equation below represents the Haber Process which is an industrial process used to make ammonia for use in fertilisers. From the balanced symbol equation we can see that there are a total of four moles of gas on the left hand side of the equation and only two on the right. If we increase the pressure, the position of equilibrium will shift to the right hand side (towards ammonia) as this is the side with the fewest moles of gas. Alternatively, if we decrease the pressure, the position of equilibrium would shift to the left hand side where there are more moles.




Temperature

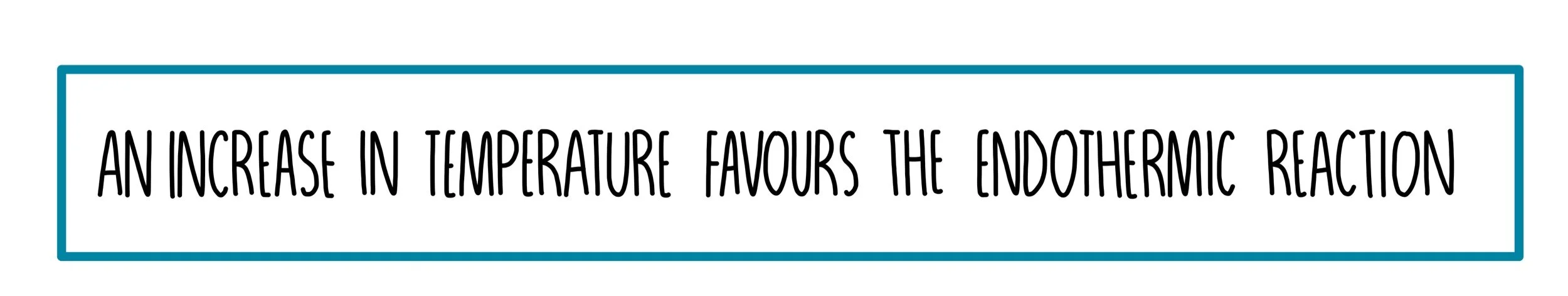

If we increase the temperature of a reaction at equilibrium, the position of equilibrium will shift in the endothermic direction to lower the temperature.

For example, hydrogen can be manufactured by reacting carbon with steam, as shown in the equation below. The forward reaction is endothermic and the reverse reaction is endothermic. This means that if we increase the temperature, the position of equilibrium will shift in the endothermic forward direction (towards the products). Alternatively, if we decrease the temperature, the position of equilibrium will shift in the exothermic reverse direction (towards the reactants).




Catalyst

A catalyst does NOT change the position of equilibrium. This is because it speeds up the forward and reverse reactions by the same amount.

Did you know..

Typically glue is either weak and reversible or strong and irreversible, but now scientists have developed a reversible superglue that was made by mimicking the substances found in snail slime. The glue is strong enough to hold a person in place but as soon as water is added to the glue, it softens and becomes less sticky.
